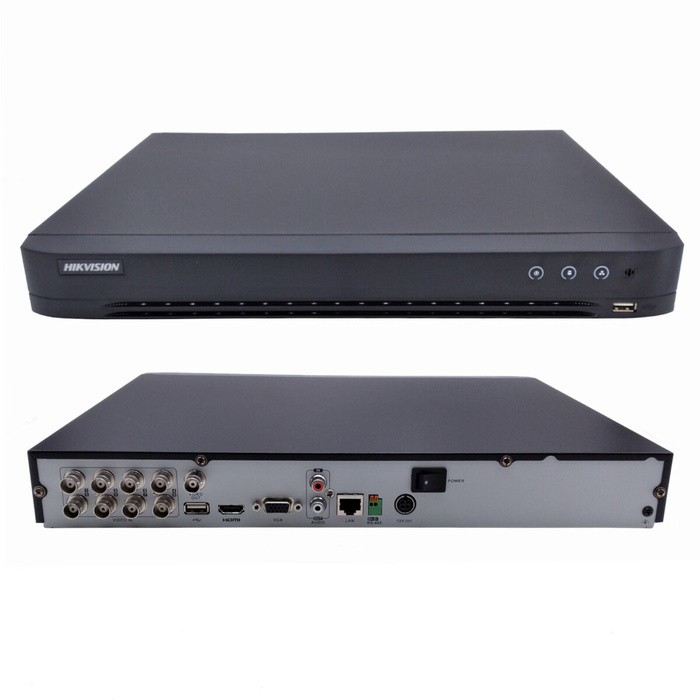

DS-7200HQHI-K/P SERIES TURBO HD DVR

DS-7200HGHI-E1 series DVR (Digital Video Recorder) is a new generation recorder developed by Hikvision independently which can connect HD TVI/analog/network cameras and Coaxitron cameras and provide powerful surveillance.

Key Features

 Support H.265 Pro+/H.265 Pro/H.265 video compression  Support HDTVI/AHD/CVI/CVBS/IP video input  Max. 6/12/24 IP cameras input (up to 6 MP)  Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission  Up to 10 TB capacity per HDD  Provide power supply to PoC cameras over coaxial cable

Compression and Recording

 H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs  Full channel recording at up to 4 MP lite resolution

Storage and Playback

 One SATA interface for DS-7204HQHI-K1/P, and two SATA interfaces for DS-7208/7216HQHI-K2/P  Smart search for efficient playback  Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

 Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras  Support 4-ch line crossing detection and intrusion detection; DS-7216HQHI-K2/P supports 1-ch sudden scene change detection

Network & Ethernet Access

 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management  Max. 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable

Model DS-7204HQHI-K1/P DS-7208HQHI-K2/P DS-7216HQHI-K2/P Recording Video compression Encoding resolution H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame rate Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p @15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Video bit rate Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) 32 Kbps to 6 Mbps Dual stream Stream type Audio compression Support Video, Video & Audio G.711u Audio bit rate Video and Audio 64 Kbps 2-ch (up to 6-ch) IP video input 4-ch (up to 12-ch) 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras 4-ch Analog video input 8-ch 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection PoC camera input Support Hikvision PoC camera *: PoC access capability see Appendix. 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 HDTVI input *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1/P, channel 1/2 of DS-7208HQHI-K2/P, and channel 1/2/3/4 of DS-7216HQHI-K2/P. AHD input HDCVI input CVBS input 4 MP, 1080p25, 1080p30, 720p25, 720p30 1080p25, 1080p30, 720p25, 720p30 CVBS output PAL/NTSC 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA output Audio input 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Audio output Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) 1-ch, RCA (Linear, 1 KΩ) 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous playback 4-ch 8-ch Network 16-ch Remote connections 32 64 Network protocols 128 TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface Auxiliary interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface SATA 1 SATA interface Capacity Serial interface 2 SATA interfaces Up to 10 TB capacity for each disk RS-485 (half-duplex) USB interface 2 × USB 2.0 Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 Alarm in/out General N/A Power supply 48 VDC Consumption (without HDD) ≤ 40 W ≤ 60 W Working temperature ≤ 120 W Working humidity Dimensions (W × D × H) -10 °C to +55 °C (+14 °F to +131 °F) 10% to 90% 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) Weights (without HDD) ≤ 1.16 kg (2.6 lb) ≤ 1.78 kg (3.9 lb) ≤ 2 kg (4.4 lb)

Physical Interfaces *: The rear panel of DS-7204HQHI-K1/P and DS-7216HQHI-K2/P provides 4/16 video input interfaces. No. Description No. Description 1 VIDEO IN 7 LAN Network Interface 2 AUDIO IN, RCA Connector 8 RS-485 Serial Interface 3 AUDIO OUT, RCA Connector 9 Power Input 4 VGA Interface 10 Power Switch 5 HDMI Interface 11 GND 6 USB Interface 12 VIDEO OUT
